The HXZ (two-plate type) series is mainly designed for large-scale products (such as logistics boxes, trash cans), precision molds, and scenarios with long mold stroke requirements, as well as those demanding high production efficiency, energy conservation, and space utilization.

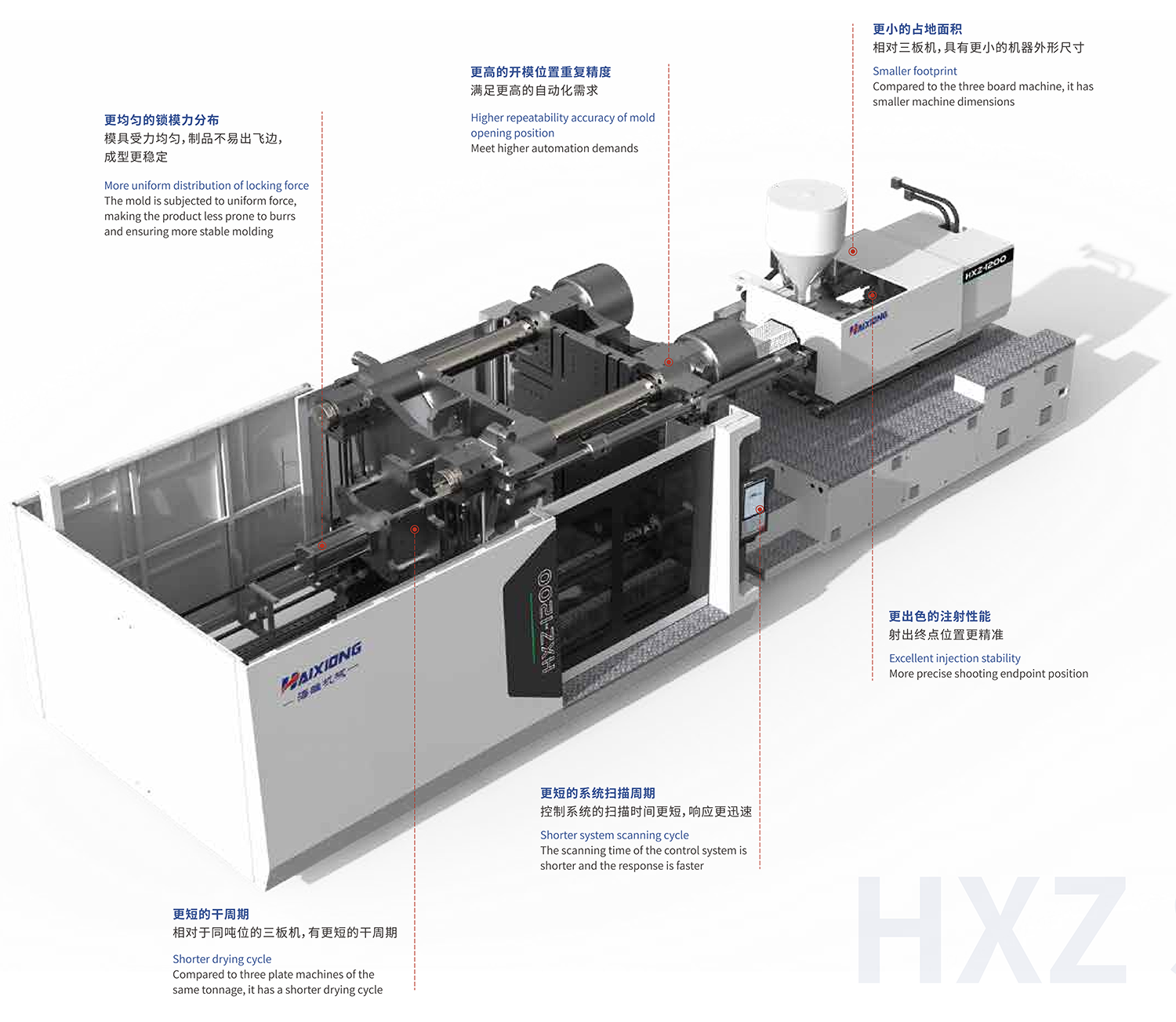

The features of the Haixiong Two-Board Series (such as HXZ, etc.) are as follows:

Two-plate locking structure: It adopts "two-plate Hafz brake + head plate high-pressure locking mechanism", with excellent rigidity and stable locking force. Under the same locking force, the machine body is more compact and occupies less space.

Large mold accommodating space: The opening stroke is large and the accommodating capacity is high, which can be adapted to large molds, thereby enhancing the mold compatibility and production flexibility.

High-precision closed-loop control: Utilizing fully digital control methods such as CANbus/EtherCAT, with pressure/flow/position closed-loop control, achieving high repeatability accuracy and stable product quality.

Reliable mold protection: Equipped with sensitive mold protection functions, it reduces the risk of mold damage and is suitable for precision mold production.

Quick response: The mold opening and closing process is fast, the drying cycle is short, and the production efficiency is high. It is suitable for batch and short-cycle molding.

Energy-saving design: Utilizes a multi-servo hydraulic system, providing energy as needed, with low operating noise. Compared to traditional models, it achieves significant energy savings.
